Flex Line Vacuum Chuck Overview:



Choose a Stainless Steel or Aluminum chuck base size, and then choose a porous ceramic size and shape.

  • Standard 8 and 14 inch square Stainless Steel or Aluminum chuck bases.

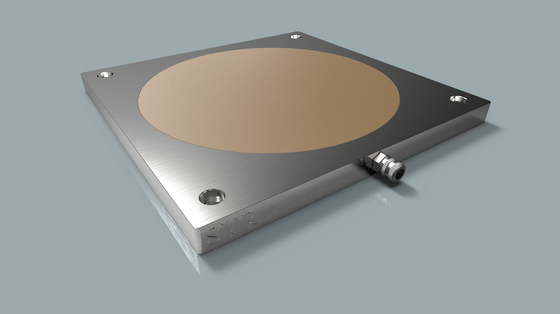

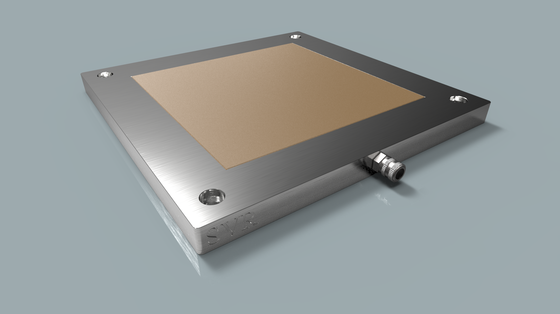

  • Standard 4,6,8,10 and 12 inch porous ceramic round or square vacuum plate inserts.
  • Stainless Steel or Aluminum, 1/2 inch thick chuck bases.
  • Ceramic can be proud or at the same level as the chuck base.
  • Flat and Parallel to .0001 across entire chuck.
  • Tooling plate mounting holes, or removable rubber feet for table top to use.
  • Quick disconnect fitting for customers 1/4 vacuum tubing.
  • 100% Made in USA
  • Chuck base has lifetime warranty.
  • Custom sizes and configurations available

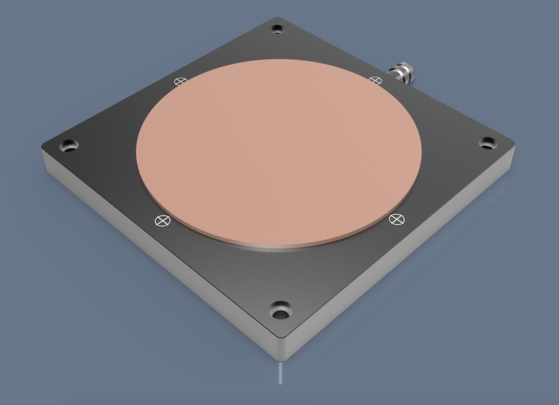

300mm Flex Line for Inspection Tools with optional fiducial marking.
