Back Lit Vacuum Chucks
Bookmark and Share
Follow SVR On:
Patent Applied for and Pending

Designed for inspection without removing the product from the tool after sawing or laser cutting.
  • On Tool Inspection
  • No Reference Points Lost
  • Variable Light Source
  • Custom Sizes
  • Custom Configurations
  • Custom Materials

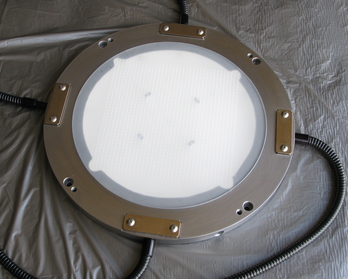

10 inch glass surface area shown.
Back Lit Vacuum Chuck in production using a 150 watt fiber optic light source with quad fiber optic cables.

~ 150 Watt Fiber Optic Light
~ Quick insert light pipes
~ 8 Inspection light ports
~ Built in film frame magnets
